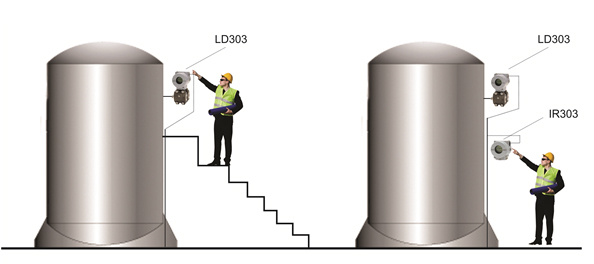

IR303 8-variable Profibus PA Remote Indicator Quotation Downloads The IR303 receives up to 8 variables (float + status) via cyclical communication with the Profibus-DP class 1 Master and enables them on the LCD display. It works with any Profibus-DP mater and is ideal for applications with the TT383, 8-channel Profibus-PA temperature transmitter or any other Profibus equipment. Communication Digital only. PROFIBUS-PA, 31.25 Kbits/s voltage mode, according to IEC 61158-2. Current Consumption 12 mA from PROFIBUS-PA network. Function Blocks 8 AO output blocks that receive the 8 variables+status via SetPoint (SP) that will be displayed on the LCD. On LCD display the mnemonics must be configured up to 5 characters. Turn on Time Approximately 10 seconds. Humidity Limits 0 to 100% RH. Classified Area Certification Explosion proof, weather proof and intrinsically safe (pending: CENELEC and FM Standards). Indication Optional 4½ digit LCD indicator. Temperature Limits Operation: -40 to 85ºC (-40 to 185 ºF). Storage: -40 to 120ºC (-40 to 250 ºF). Vibration Effect Meets SAMA PMC 31.1. Electromagnetic Interference Effect Designed to comply with IEC 801. Hardware Physical: according to IEC 61158-2 and conformity with the FISCO model. Electrical Connection 1/2-14 NPT, PG 13.5 or M20 x 1.5. Material of Construction Injected low copper aluminum with polyester painting or 316 Stainless Steel housing, with Buna N O-rings on cover (NEMA 4X, IP67). Mounting With an optional bracket that can be installed on a 2" pipe or fixed on a wall or panel. Weight Without mounting bracket: 93 kg
